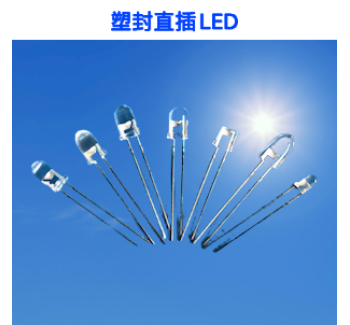

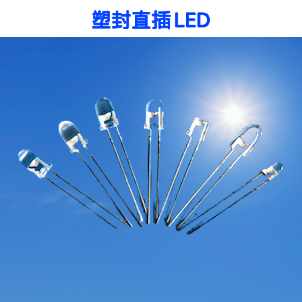

塑封直插LED的型號說明：
例：W365DRC-06Z
| W | 塑封直插 |
| 365 | 波長 |
| D | 芯片類型代號 |
RC | 封裝材料代號 |
| 06 | 外形設(shè)計 |
| Z | 齊納二極管 |
| 外形設(shè)計 | 直徑 | 透鏡類型 | 照片 |
| 01 | 5mm | 球面 | |
| 02 | 5.1mm | 非球面 | |
| 03 | 5.0mm | 球面 | |
| 04 | 5.0mm | 球面 | |
| 05 | 5.0mm | 平面 | |
| 06 | 5.5mm | 非球面 | |
| 31 | 3mm | 平面 | |
| 34 | 3mm | 球面 | |
| 35 | 3mm | 球面 |
型號 | 峰值波長 典型值 (nm) | 輻射功率 典型值 (mW) | 輻射強(qiáng)度 典型值 (mW/sr) | 半高 全寬 (nm) | 指向角 典型值 (deg) | 測試 電流 (mA) | 正向電壓 典型值 (V) | 最大 DC電流 (mA) |
W325RC-06Z | 325 | 2.0 | 32 | 12 | 9 | 20 | 4.2 | 40 |
| W340HRC-06Z | 340 | 6.2 | 70 | 10.5 | 7 | 20 | 4.7 | 50 |
| W365DRC-01Z | 367 | 22.0 | 115 | 8 | 20 | 20 | 3.3 | 100 |
W365DRC-06Z | 365 | 34.0 | 370 | 9 | 7 | 20 | 3.3 | 100 |
W370DRC-01Z | 370 | 12.0 | 70 | 14 | 17 | 20 | 3.5 | 50 |
W375DRC-06Z | 375 | 31.0 | 14 | 20 | 3.5 | |||
W385DRC-06Z | 385 | 80.0 | 1100 | 12 | 7 | 50 | 3.3 | 100 |
W405R-01 | 405 | 22.0 | 170 | 15 | 15 | 20 | 3.2 | 50 |
W405R-02 | 405 | 28.0 | 320 | 14 | 7 | 20 | 3.2 | 50 |
W405R-06 | 405 | 25.0 | 250 | 14 | 8 | 20 | 3.2 | 50 |
W405R-34 | 405 | 25.0 | 120 | 14 | 6 | 20 | 3.2 | 50 |
W405R-35 | 405 | 25.0 | 80 | 14 | 4 | 20 | 3.2 | 50 |
W415R-01 | 415 | 25.0 | 210 | 18 | 13 | 20 | 3.2 | 50 |
W415R-06 | 415 | 28.0 | 300 | 17 | 7 | 20 | 3.2 | 50 |
W420R-01 | 420 | 25.0 | 210 | 18 | 13 | 20 | 3.2 | 50 |
W420R-06Z | 420 | 28.0 | 300 | 17 | 7 | 20 | 3.2 | 50 |
W430R-06 | 430 | 28.0 | 300 | 17 | 7 | 20 | 3.2 | 50 |
W435R-01 | 435 | 25.0 | 270 | 17 | 17 | 20 | 3.0 | 50 |
W440R-06 | 440 | 25.0 | 17 | 17 | 20 | 3.0 | 50 | |
W450DR-01 | 450 | 26.0 | 125 | 17 | 20 | 20 | 2.8 | 50 |
W450DR-06 | 450 | 29.0 | 435 | 17 | 7 | 20 | 2.8 | 50 |
W460-01 | 460 | 20 | 50 | |||||
W460-02 | 460 | 20 | 50 | |||||
W460-06 | 460 | 24.0 | 140 | 22 | 6 | 20 | 2.9 | 50 |
W470-01 | 470 | 20.0 | 23 | 20 | 2.8 | 50 | ||
W470-06 | 470 | 20.0 | 165 | 23 | 6 | 20 | 2.8 | 50 |
W470-34 | 470 | 20.0 | 80 | 23 | 10 | 20 | 2.8 | 50 |
W480-06 | 480 | 60.0 | 230 | 21 | 12 | 50 | 2.6 | 100 |
W490-06 | 490 | 20.0 | 20 | 50 | ||||
W500-02 | 500 | 20 | 50 | |||||
W505-01 | 505 | 11.0 | 70 | 32 | 12 | 20 | 3.2 | 50 |
W505-06 | 505 | 13.0 | 130 | 32 | 7 | 20 | 3.2 | 50 |
W510-01 | 510 | 11.0 | 70 | 32 | 12 | 20 | 3.2 | 50 |
W510-06 | 510 | 13.0 | 130 | 32 | 7 | 20 | 3.2 | 50 |
W520-01 | 520 | 12.0 | 60 | 30 | 20 | 20 | 3.0 | 50 |
W520-06 | 520 | 13.0 | 80 | 30 | 7 | 20 | 3.0 | 50 |
W525-01 | 525 | 12.0 | 60 | 30 | 20 | 20 | 3.0 | 50 |
W525-06 | 525 | 13.0 | 80 | 30 | 7 | 20 | 3.0 | 50 |
W525-35 | 525 | 12.0 | 25 | 80 | 28 | 20 | 3.0 | 50 |
W540-01 | 540 | 7.0 | 50 | 37 | 17 | 20 | 2.7 | 50 |
W540-06 | 540 | 9.0 | 90 | 36 | 7 | 20 | 2.7 | 50 |
W545-01 | 545 | 7.0 | 50 | 37 | 17 | 20 | 2.7 | 50 |
W545-06 | 545 | 9.0 | 90 | 36 | 7 | 20 | 2.7 | 50 |
W555-06 | 555 | 9.0 | 70 | 36 | 7 | 20 | 2.7 | 50 |
W570-01 | 570 | 0.6 | 12 | 20 | 2.1 | 50 | ||
W575-06 | 575 | 0.7 | 15 | 12 | 6 | 20 | 2.1 | 50 |
W575Y-06Z | 575 | 12.0 | 125 | 125 | 7.5 | 20 | 2.8 | 50 |
W575-34 | 575 | 0.6 | 12 | 20 | 2.1 | 50 | ||
W590-01 | 590 | 9.0 | 14 | 20 | 2.1 | 50 | ||
W590-06 | 590 | 9.0 | 170 | 14 | 6 | 20 | 2.1 | 50 |
W600-02 | 600 | 8.0 | 130 | 15 | 5 | 20 | 2.1 | 50 |
W600-05 | 600 | 8.0 | 15 | 80 | 20 | 2.1 | 50 | |
W600-06 | 600 | 8.0 | 100 | 15 | 7 | 20 | 2.1 | 50 |
W610-01 | 610 | 12.0 | 45 | 14 | 20 | 20 | 2.2 | 50 |
W610N-01 | 610 | 20 | 50 | |||||
W610-06 | 610 | 12.0 | 151 | 14 | 6 | 20 | 2.2 | 50 |
W620-06 | 620 | 13.0 | 120 | 15 | 7 | 20 | 2.2 | 50 |
W620-34 | 620 | 9.0 | 50 | 14 | 10 | 20 | 2.0 | 50 |
W625-01 | 625 | 13.0 | 15 | 20 | 2.2 | 50 | ||
W625-06 | 625 | 13.0 | 120 | 15 | 7 | 20 | 2.2 | 50 |
W630-01 | 630 | 20 | 50 | |||||
W630-02 | 630 | 20 | 50 | |||||
W630-06 | 630 | 20 | 50 | |||||
W640-01 | 640 | 20 | 50 | |||||
W645-06 | 645 | 17.0 | 240 | 15 | 6 | 20 | 2.1 | 50 |
W650-01 | 650 | 15.0 | 55 | 19 | 22 | 20 | 2.0 | 50 |
W650-06 | 650 | 16.0 | 240 | 19 | 7 | 20 | 2.0 | 50 |
W660N-01 | 660 | 15.0 | 65 | 18 | 21 | 20 | 2.0 | 50 |
W660N-05 | 660 | 15.0 | 18 | 80 | 20 | 2.0 | 50 | |
W660N-06 | 660 | 16.0 | 240 | 17 | 6 | 20 | 2.0 | 50 |
W680-06 | 680 | 15.0 | 230 | 18 | 6 | 20 | 1.9 | 50 |
W700-01 | 700 | 25.0 | 85 | 19 | 20 | 50 | 2.1 | 100 |
W700-02 | 700 | 25.0 | 410 | 19 | 5 | 50 | 2.1 | 100 |
W700-06 | 700 | 40.0 | 550 | 19 | 7 | 50 | 2.0 | 100 |
W750-03 | 750 | 37.0 | 90 | 22 | 26 | 50 | 1.9 | 100 |
W750-06 | 750 | 34.0 | 610 | 23 | 6 | 50 | 1.7 | 100 |
W760-03 | 760 | 37.0 | 90 | 22 | 26 | 50 | 1.9 | 100 |
W760-04 | 760 | 40.0 | 46 | 20 | 30 | 50 | 1.7 | 100 |
W780-03 | 780 | 26.0 | 55 | 27 | 25 | 50 | 1.8 | 100 |
W810-01 | 810 | 35.0 | 30 | 50 | 1.6 | 100 | ||
W810-06 | 810 | 35.0 | 480 | 30 | 5 | 50 | 1.6 | 100 |
W840-06 | 840 | 50 | 100 | |||||
W850-06 | 850 | 35.0 | 480 | 28 | 6 | 50 | 1.5 | 100 |
W880-06 | 880 | 37.0 | 500 | 31 | 5 | 50 | 1.6 | 100 |
W910-06 | 910 | 50 | 100 | |||||
W980D-03 | 980 | 32.0 | 110 | 78 | 25 | 50 | 1.5 | 100 |
W980-06 | 980 | 50 | 100 | |||||
W1050-03 | 1050 | 35.0 | 95 | 50 | 26 | 50 | 1.3 | 100 |
W1050-06 | 1050 | 35.0 | 50 | 50 | 1.3 | 100 | ||
W1450-06 | 1450 | 50 | 100 |
